Autocad Standard Dishwasher Block | Plan - Front & Side Views

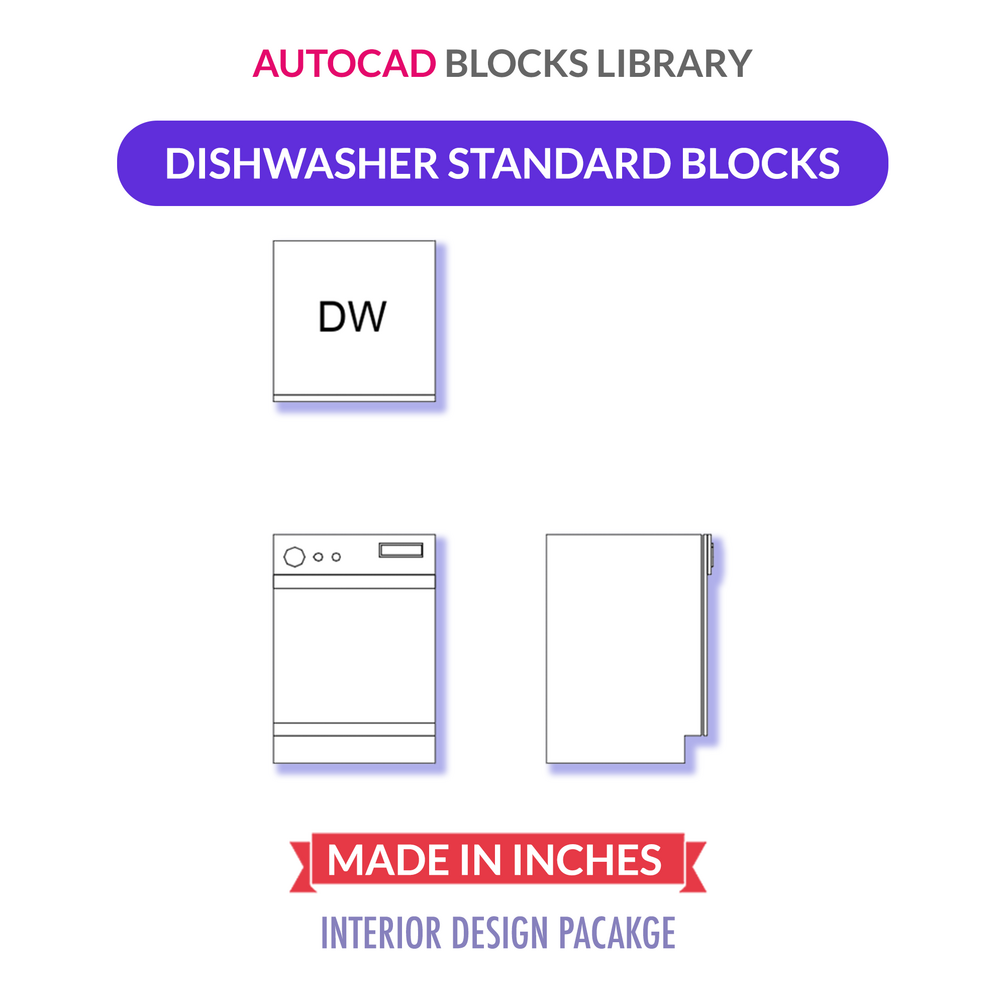

2D Autocad Blocks collection of dishwasher with all 3 views.

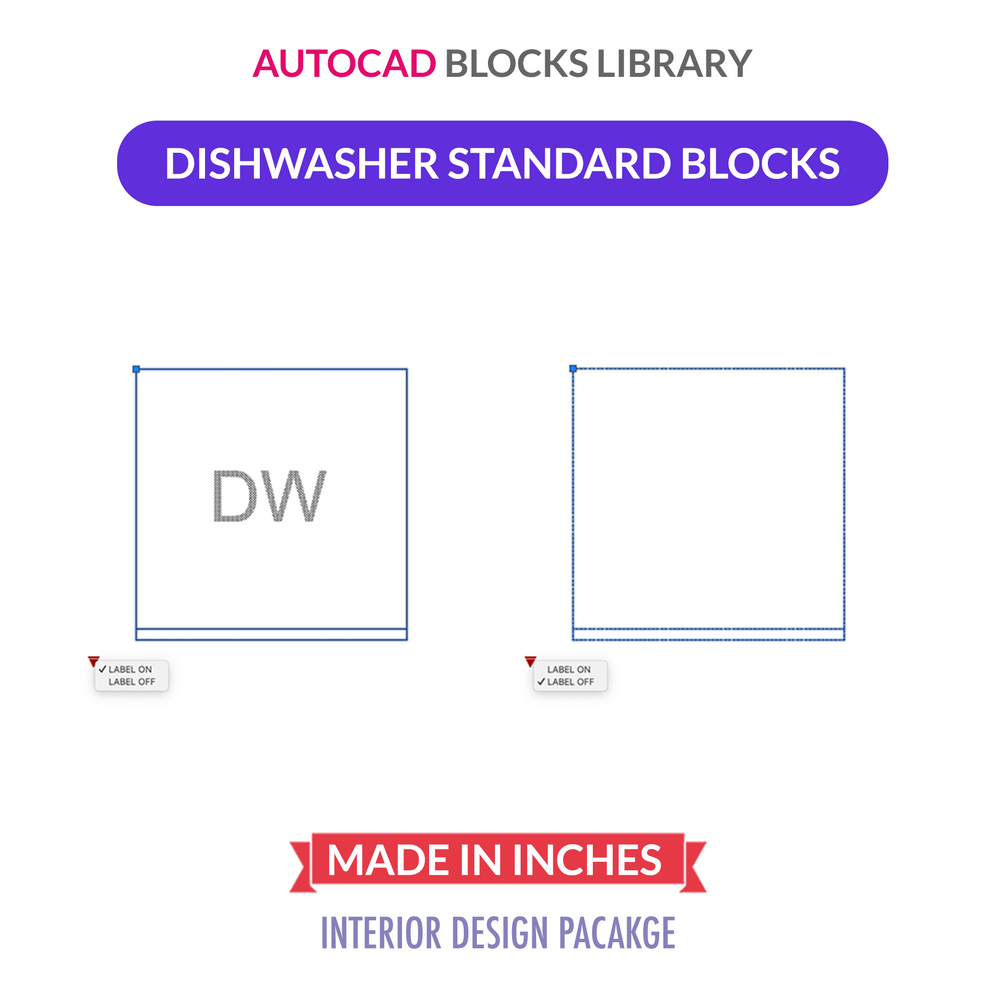

The floor plan view has a visibility setting assigned to the block to turn the label "DW" on / off.

You will get 3 quality blocks for you to use in your interior design or architecture project.

Properly named & organized.

Easy to use! Just copy & paste into your drawing or project.

For advanced users, It can be used from the Design Center, Insert Menu, and Palettes window - for Mac users, you can use it from the blocks tab -> Block libraries.

Need a custom Autocad drawing? I would love to create a custom block for your needs with the dimensions and style of your choice!

Need help using the files? Please contact me and I will gladly guide you!
