Autocad Blocks Collection | Interior Design & Architecture Package

0 ratings
Add to cart
990 left

Autocad Blocks Collection | Interior Design & Architecture Package

$79.99
Jay Cad
0 ratings

Hello designers & creative people!

My name is Jay and I am a senior draftsman based in Los Angeles.

I have been working with Autocad for almost 10 years now and I have extensive experience in interior design & residential architecture projects.

I created this package of over +200 Autocad blocks with busy professionals in mind.

It's always frustrating to spend time creating blocks for the different elements of a project, not mention researching the standard sizes and finding what works in your design.

The solution is here! Use this collection to cut on production time and really focus on what you really like: DESIGN!

This package is made in inches & feet.

In this package, you will get :

ANNOTATIONS (See photos below)

  •  Standard Text Styles
  • Standard Dimension Styles
  • Standard Leaders Styles
  • North arrow symbol

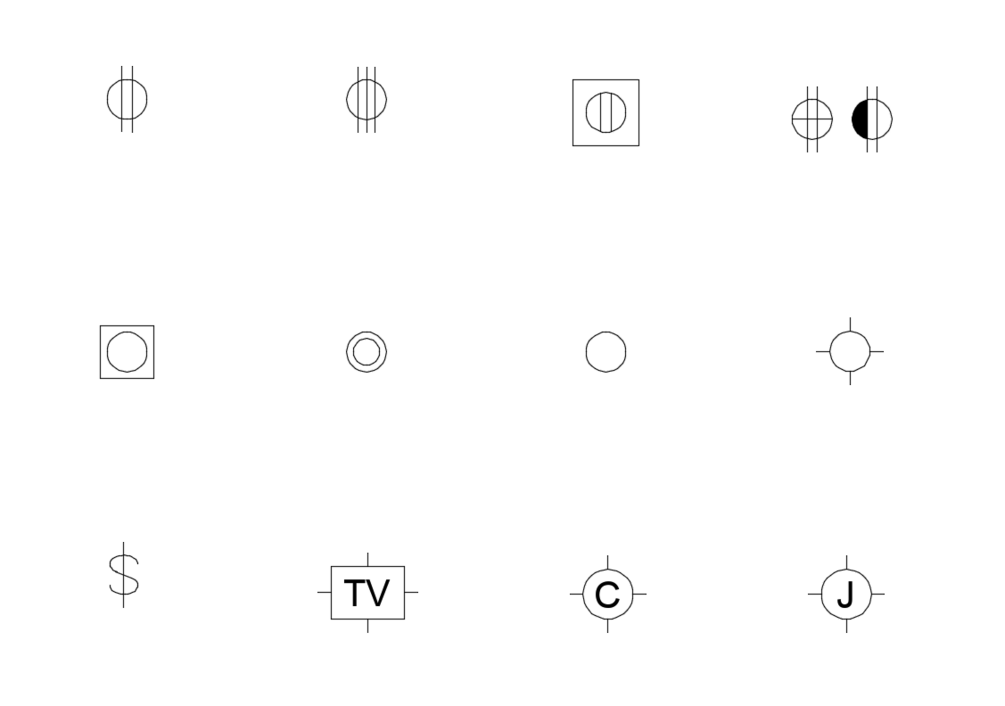

  • Electrical symbols


TITLEBLOCKS:

  • Size B: 11 x 17
  • Size D: 36 x 24
  • Size E1: 42 x 30
  • Size E: 48 x 36


EQUIPMENT:

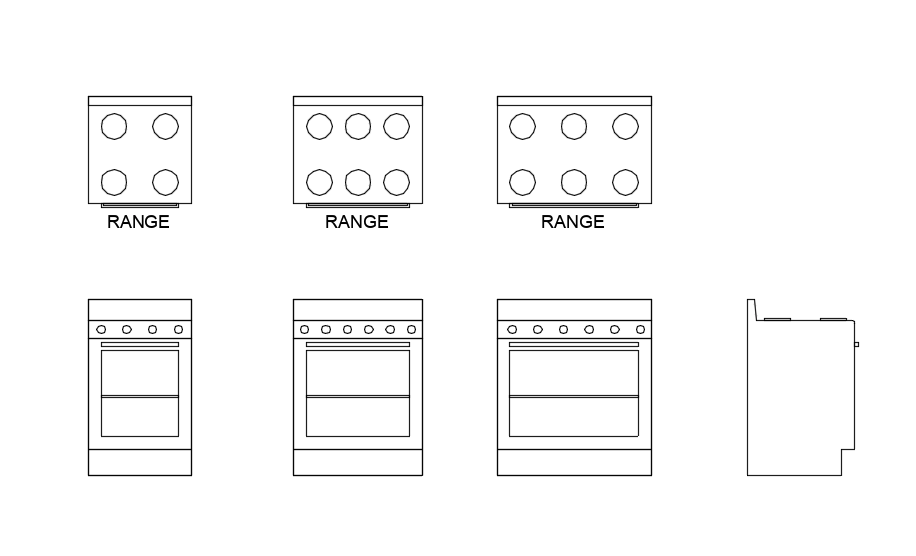

  • Range

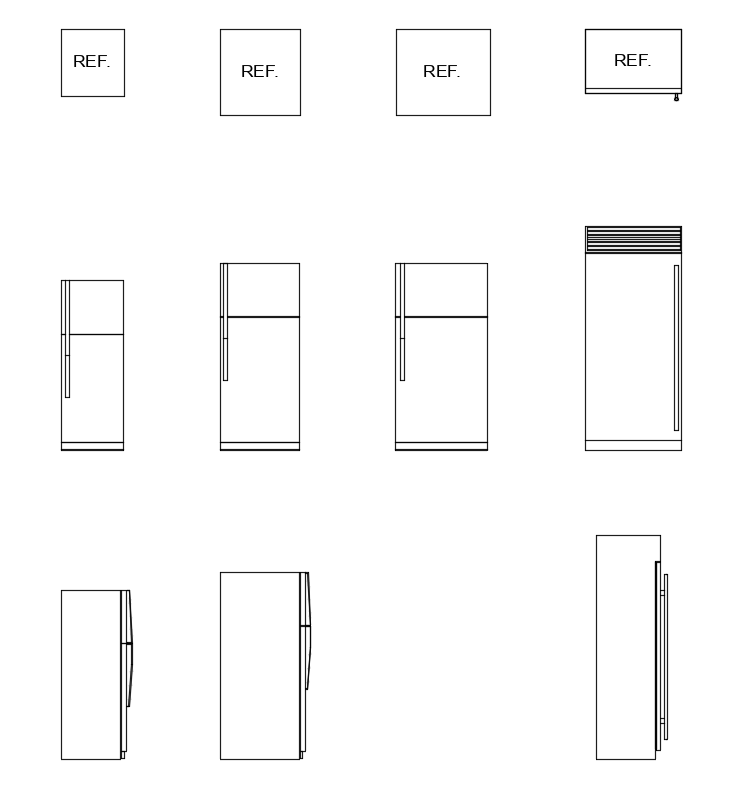

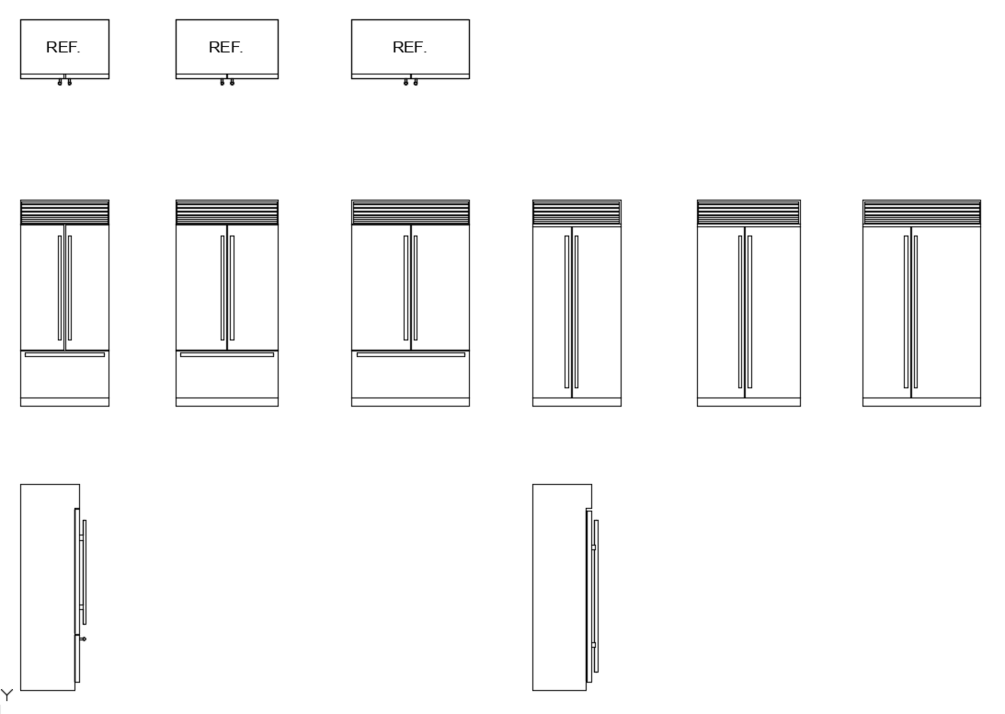

  • Refrigerator

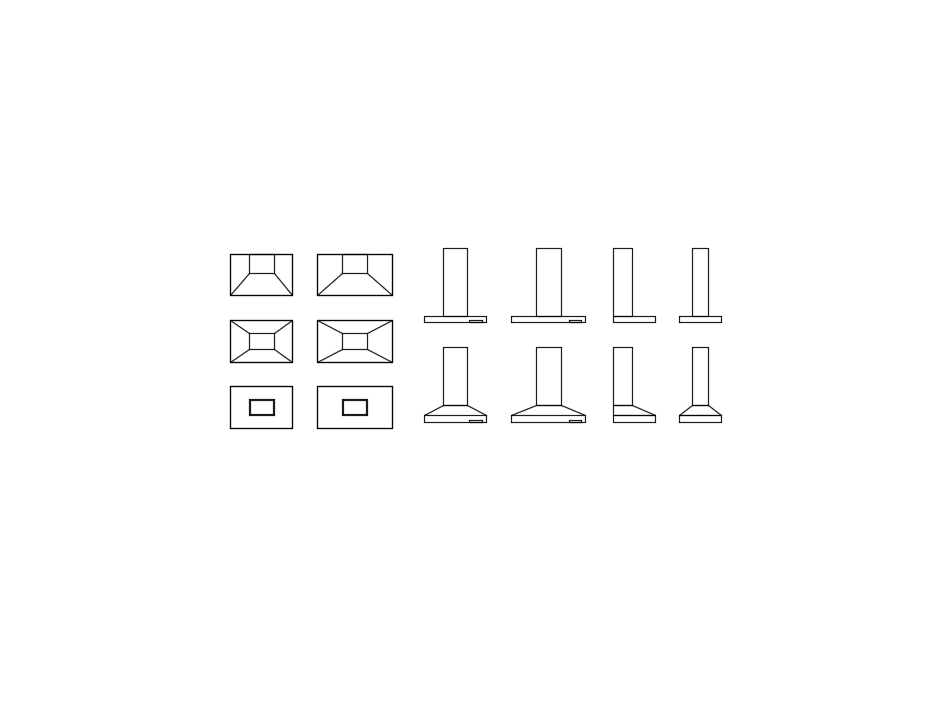

  • Hood
  • Dishwasher

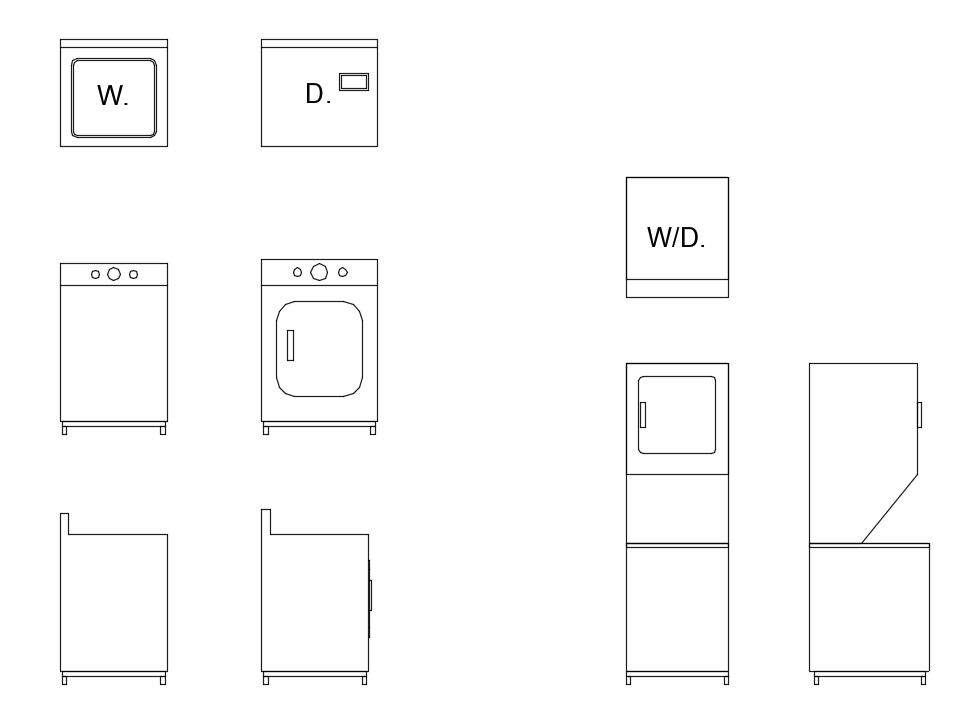

  • Washer/dryer


FIXTURES:

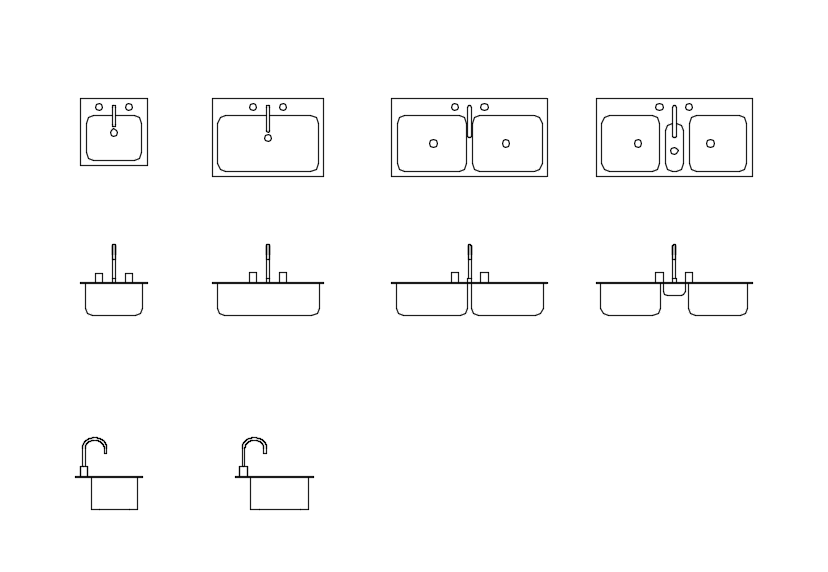

  • Sinks
  • Bathtub
  • Shower base

DOORS & WINDOWS:

  • Windows elevations
  • Garage doors elevations
  • Doors elevations


FURNITURE:

  • Chairs
  • Tables
  • Standard beds (plans + elevations)
  • Pillows
  • TVs (plans + elevations)

Text Styles For All Common Scales

Dimension Styles For All Common Scales

Leader Styles For All Common Scales

Autocad titleblock - size B - 11 x 17

Autocad titleblock - size D - 36 x 24

Autocad titleblock - size E1 - 42 x 30

Autocad titleblock - size E - 48 x 36

Base Cabinets - Plan & elevation views

Single & Double Garage Doors

Swing Doors Elevations

Windows Elevations (casement, overhang, sliding)

Beds & pillows collection

TV Plans & Elevations


Add to cart
File Format
DWG
Version
Autocad 2007 & Above
Units
Imperial (Inches & Feet)
Size
396 KB
